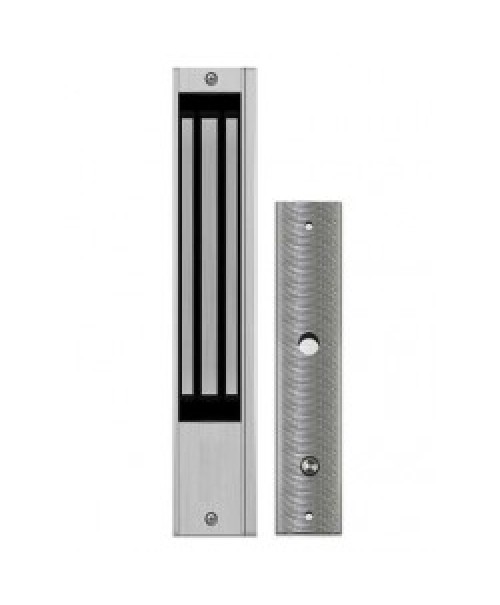

Magnetic Lock 280 Kg Access Control System in Dubai UAE

Magnetic Lock 280 Kg

Electromagnetic Door Lock 280 Kg in Dubai UAE

Electromagnetic Lock 280 Kg 600 Lbs:

• Electromagnetic Lock 600lb Holding Force Fail Safe
• with LED Sensor for Out-Swing Door
• LED, Lock sensor
• Voltage: DC12V and DC24V
• Holding Force: 280KG
• Built in LED and door sensor

Specifications:

• Lock size : 250Lx48.5Wx25H(mm)
• Plate : 180Lx38Wx11H(mm)
• Holding Force : 280kg (600Lbs)
• Voltage : DC12V or DC24V (adjustable)
• Current Draw : 12V/500mA 24V/250mA
• Signal Output Dry Contact, Max Rating of Contact Current 3A
• Surface Temp : ≤20°C
• Operating Temp : -10°C ~ 55°C (14°F~131°F)
• Suitable Humidity : 0~90%(non-condensing)
• Finishes for Shell : Anodized aluminum surface texture processing
• Finishes for Magnetic : Zinc
• Finishes for Armature : Zinc
• Weight : 2kg
