1 Door Controller for Access Control System in Dubai UAE

Access Control 1 Door Controller

Access Control 1 Door Network Controller in Dubai UAE

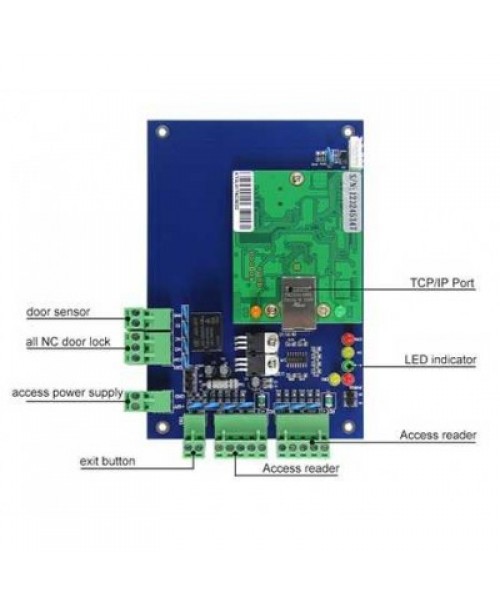

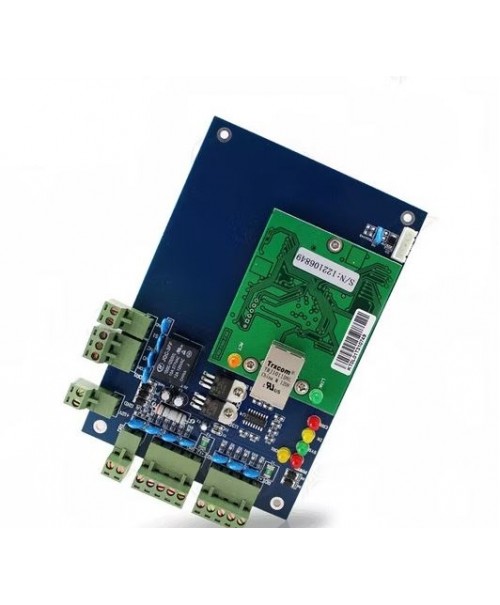

Access Control 1 Door Network Controller:

• RFID System One Door Network Panel Wiegand Gate Access Control Panel
• Single door Network access control board built-in TCP/IP,
• Support APP/4G/Web-server with free software and SDK
• 1door support 2pcs RFID Access reader or 1pcs RFID reader+1pcs exit push button

Specifications:

• Parameter : Single Door Control Panel
• Model : ACB-001
• Communication : TCP/IP 10M/100M adaptive
• Description : Control 1 door, get in and out the door by swiping the card
• Size of PCB board : 160mm*106mm
• Size of Case : 273mm*228mm*65mm
• Power Supply : 12VDC 4-7A
• Power Consumption of Circuit Board : Less than 100mA
• Input Format of Reader : Wiegand 26
• Door Controlled : 1door
• Door opening time extending setting : 1-600 seconds
